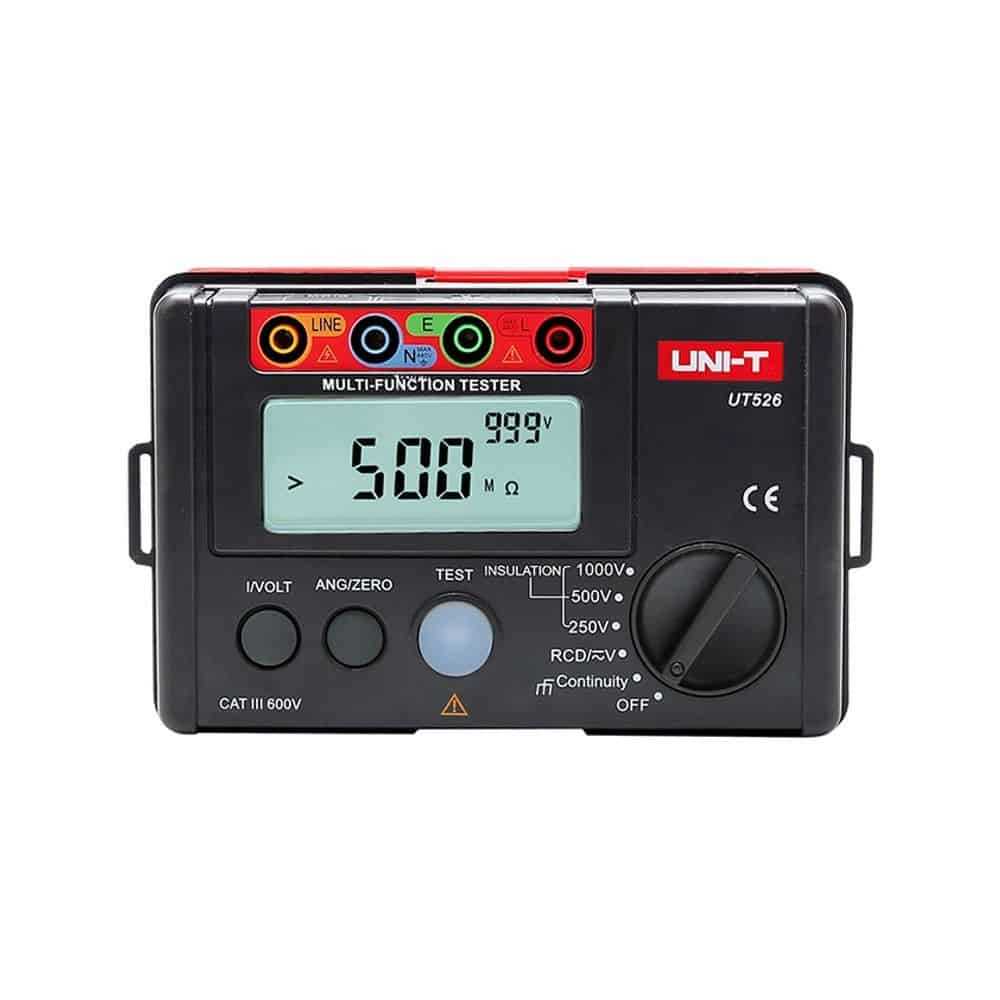

Uni-T UT526 Multifunction Electrical Meter, 10000 Display Count is a product engineered with precision, delivering exceptional performance
with features like aC or DC Judgment Voltage Measurement, test Light and phase Switch RCD 0° and 180°.
Maintive brings to you 100% genuine Multifunction Testers from Uni-T at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order UT526 Multifunction Electrical Meter, 10000 Display Count today at the best price only from Maintive.
Features
AC or DC Judgment: Voltage Measurement
Test Light
Phase Switch (RCD): 0° and 180°
Low Battery Display
Specifications
Test Voltage 250V/500V/1000V +/-(10%+0)
Test Current 100V (R=100kOhm),1mA +/- (10%+0)
Test Current Short Circuit <2mA 250V: 0.05MOhm ~ 200MOhm +/- (5%+5)
RCD Operational Voltage 220V+/-10% / 45Hz ~ 65Hz
Test Current 10mA/30mA/100mA/300mA 0~10%
Trip Time 0ms--2000ms, 1 n General (10mA) +/-(5%+2)
Test Voltage Around 5.0V
Test Current >200mA (R<2W)
Continuity Resistance Range 0.00W ~ 2000W (UT526) +/- (2%+5)
AC/DC Voltage 0~440V +/- (2%+3)
Warranty1 year manufacturer's warranty
Test Voltage 250V/500V/1000V +/-(10%+0)
Test Current 100V (R=100kOhm),1mA +/- (10%+0)
Test Current Short Circuit <2mA 250V: 0.05MOhm ~ 200MOhm +/- (5%+5)
RCD Operational Voltage 220V+/-10% / 45Hz ~ 65Hz
Test Current 10mA/30mA/100mA/300mA 0~10%
Trip Time 0ms--2000ms, 1 n General (10mA) +/-(5%+2)
Test Voltage Around 5.0V
Test Current >200mA (R<2W)
Continuity Resistance Range 0.00W ~ 2000W (UT526) +/- (2%+5)
AC/DC Voltage 0~440V +/- (2%+3)
Warranty1 year manufacturer's warranty
