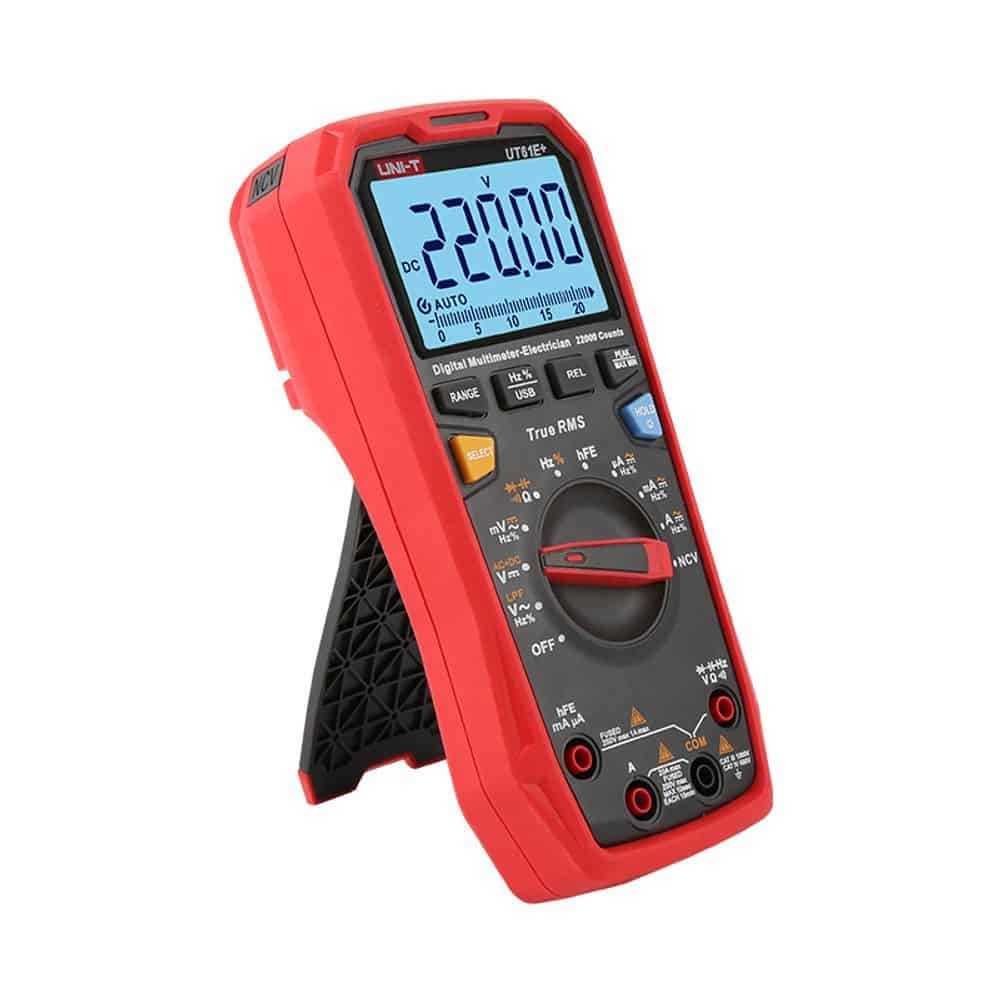

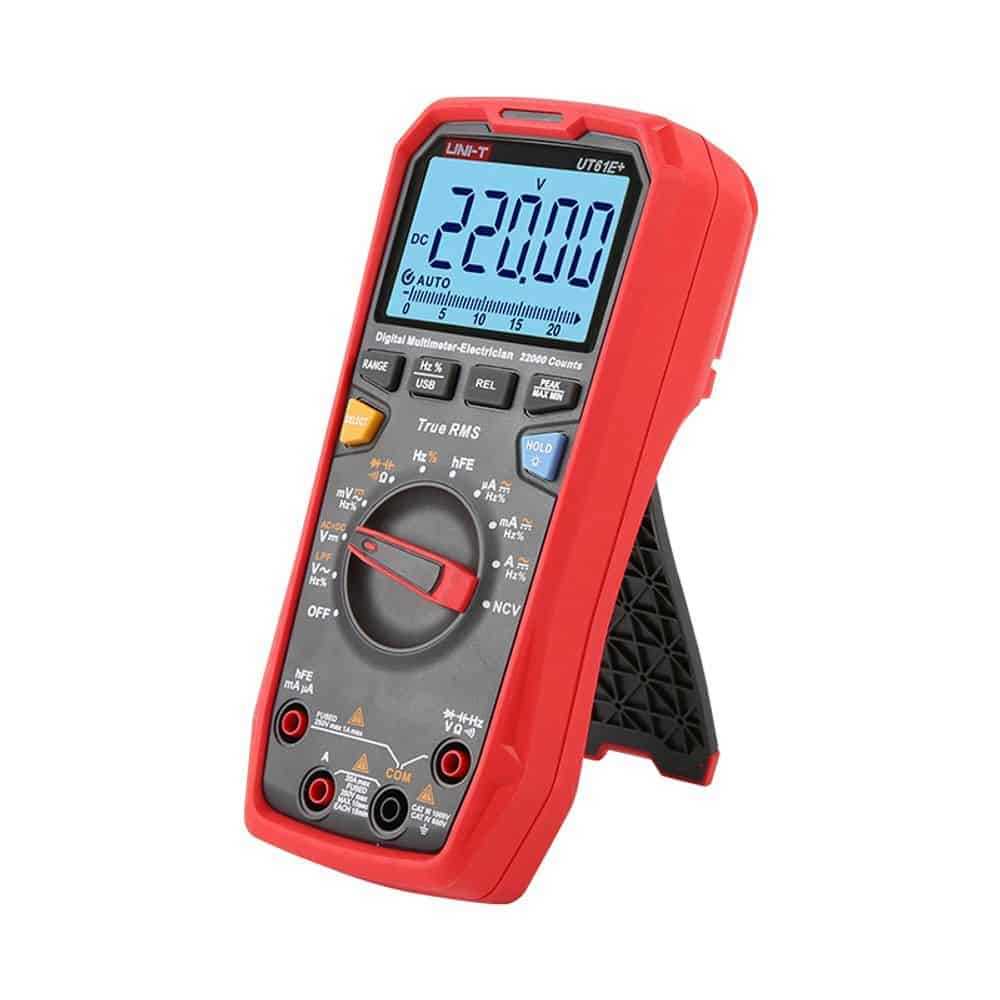

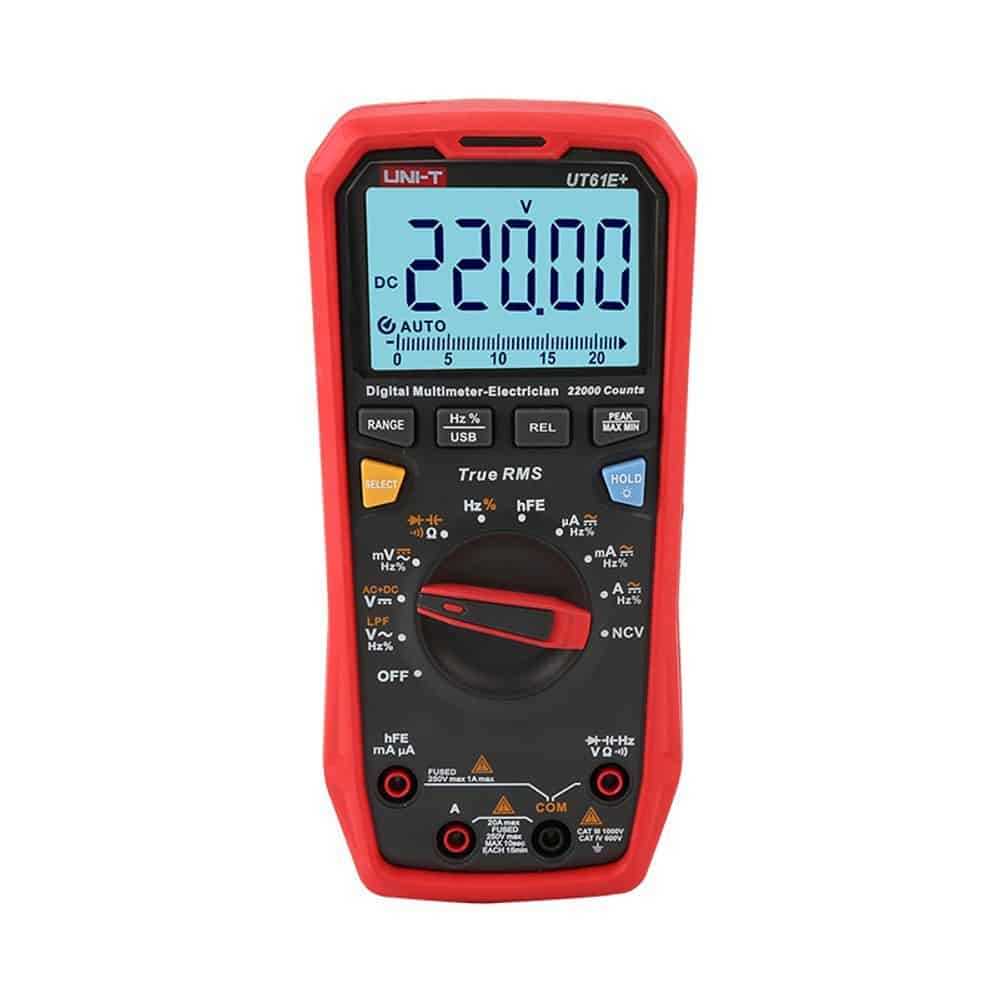

Uni-T UT61E+ True RMS Digital Multimeter HVAC 1000V is a product engineered with precision, delivering exceptional performance
with features like uT61+ series are reliable true RMS digital multimeters with display counts 6000 UT61B+D+ and 22000 UT61E+, it can measure up to 1000V ACDC and equipped with audible and visible alarm this series can provide warning expecially when measuring high voltagecurrent and temperature.
Maintive brings to you 100% genuine Digital Multimeters from Uni-T at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order UT61E+ True RMS Digital Multimeter HVAC 1000V today at the best price only from Maintive.
Features
UT61+ series are reliable true RMS digital multimeters with display counts 6000 (UT61B+/D+) and 22,000 (UT61E+).
It can measure up to 1000V AC/DC.
Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.
Max/Min/Relative mode
USB communication
Specifications
AC voltage (V)1000V ±(0.8%＋10)
DC voltage (V)1000V ±(0.05%＋5)
AC current (A)20A ±(0.8%＋10)
DC current (A)20A ± (0.5%＋10)
Resistance (Ω)220MΩ ±(0.5%＋10)
Capacitance (F)220mF ±(3%＋5)
Frequency (Hz)220MHz ±(0.01%＋5)
Duty cycle (%)0.1%~99.9% ±(2%＋5)
Display count22000
Bandwidth (Hz)40~10kHz
Power1.5V battery (R03) x 4
Product net weight350g
Product size190mm x 90mm x 50mm
Warranty1 year manufacturer's warranty
AC voltage (V)1000V ±(0.8%＋10)
DC voltage (V)1000V ±(0.05%＋5)
AC current (A)20A ±(0.8%＋10)
DC current (A)20A ± (0.5%＋10)
Resistance (Ω)220MΩ ±(0.5%＋10)
Capacitance (F)220mF ±(3%＋5)
Frequency (Hz)220MHz ±(0.01%＋5)
Duty cycle (%)0.1%~99.9% ±(2%＋5)
Display count22000
Bandwidth (Hz)40~10kHz
Power1.5V battery (R03) x 4
Product net weight350g
Product size190mm x 90mm x 50mm
Warranty1 year manufacturer's warranty
